2 Inch-1.25 Inch GS Pulling Tool Wireline Pulling Tool

Name: 2 Inch125 Inch GS Pulling Tool Wireline Pulling Tool
Brand: Ruixin
Price: 1 USD

Buy cheap 2 Inch-1.25 Inch GS Pulling Tool Wireline Pulling Tool product

Brand Name : Ruixin

Model Number : 1.5inch 2inch 2.5inch 3inch 3.5inch，4inch 5inch 6inch 7inch

Certification : API Q1

Place of Origin : China Baoji

MOQ : 1

Payment Terms : T/T, Western Union

Supply Ability : 1 set 2 weeks

Delivery Time : 2-4 weeks

Packaging Details : Wooden Box

Name : 2 Inch-1.25 Inch GS Pulling Tool Wireline Pulling Tool

Size : 1.5inch 2inch 2.5inch 3inch 3.5inch，4inch 5inch 6inch 7inch

Fish Neck : 1.187inch 1.375inch 1.75inch 2.313inch 3.125inch

Fishing diameter : 1.06inch~5.38inch

Actual OD : 1.47inch~5.83inch

Material : Alloy Steel&Nickel Alloy

Connection : SR,QLS,BLQJ,HDQRJ

Contact Now

2 Inch-1.25 Inch GS Pulling Tool Wireline Pulling Tool

I. Introduction: (B)

The GS type pulling tool is used to pull inner fishing necks, which can cut off and release an object downward and is usually is used to throw and fishing the lock cylinder, packer, bridge plug and others with inner fishing necks. After connecting the GU joint (upward shear joint), it can be converted to be an upward shear and releasing tool.

II. General Technical Parameters: (A)

Size	Actual OD	Fishing neck	Fishing diameter	Connection	PN.
1-1/2″	1.47″	1.187″	1.06″	15/16″-10UN	W32-01.05.00
2″	1.81″	1.375″	1.38″	15/16″-10UN	W32-01.01.00
2-1/2″	2.25″	1.375″	1.81″	15/16″-10UN	W32-01.02.00
3″	2.72″	2.313″	2.31″	1-1/16″-10UN	W32-01.03.00
3-1/2″	3.11″	2.313″	2.62″	1-1/16″-10UN	W32-01.06.00
4″	3.62″	2.313″	3.12″	1-1/16″-10UN	W32-01.07.00
5″	4.5″	3.125″	4″	1-1/16″-10UN	W32-01.08.00
6″	5.56″	3.125″	4.75″	1-1/16″-10UN	W32-01.09.00
7″	5.83″	3.125″	5.38″	1-1/16″-10UN	W32-01.10.00

Note: More customized parts are available upon request.

III. Maintenance:

1. After disassembling the tool, inspect the damages of all parts and change the damaged parts.

2. While assembling the tool, the thread surface shall be painted with a thin layer of grease.

3. After assembly, the connection threads of fishing neck shall be protected with thread protector and marked for standby application.

Tools Can Be Manufactured To Any Size Required.Welcome to contact us at any time.

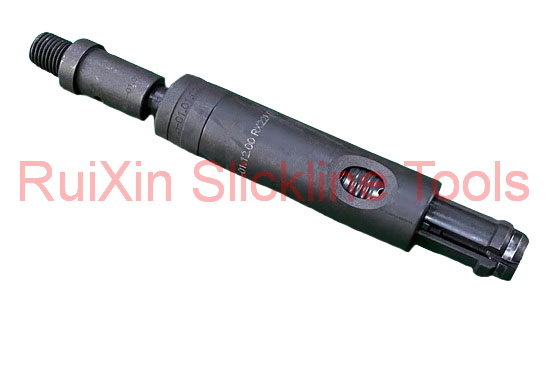

2 Inch-1.25 Inch GS Pulling Tool Wireline Pulling Tool Images
