2 Inch Wireline Brush Gauge Cutter Slickline Tools
I.Introduction

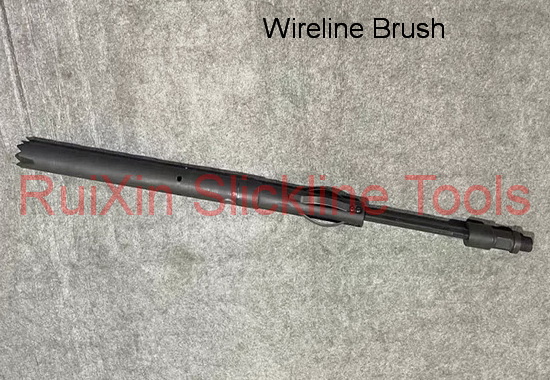

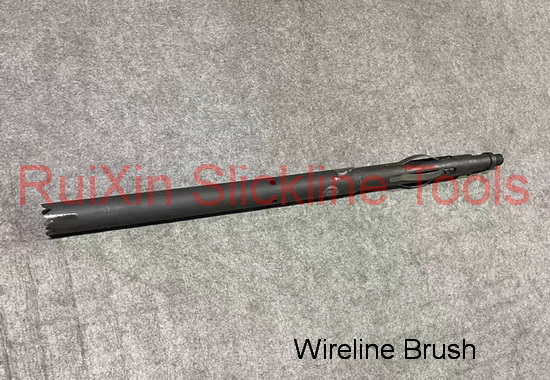

The Wireline Brush is used to brush out scale, waxes or packing debris from the tubing string and tubing nipples prior to running the subsurface devices.
II.Technical Parameters
| Actual O.D. | Fishneck O.D | Connections | Length |
| 1.5" | 1.375" | 15/16UN | 24"/36" |
| 1.875" | 1.375" | 15/16UN | 24"/36" |
| 2.25" | 1.75" | 1-1/16UN | 24"/36" |
| 2.50" | 1.75" | 1-1/16UN | 24"/36" |
| 4" | 2.313" | 1-1/16UN | 24"/36" |
Tools can be manufactured to any size required.
III.Structural features
Some holes are drilled on the weight bar of wireline brush evenly and rotationally, and then the wireline is fixed with headless screws. The wireline stretching out of the body is incompact more convenient for brushing away sundries.The wireline brush is connected with the bottom of basic tool string for use.
IV. Daily maintenance
1. When the tool is not used temporarily, paint the connecting thread with lubricating grease and keep it with thread protector.
2. When the open wireline head is bended and displaced, adjust it in time for next use.
Welcome to contact us at any time.
◆About Baoji RuiXin Slickline Tools
Baoji Ruixin Energy Equipment Co., Ltd. was established in 2012. It is an IS0: 9001-2015 and API Q1 system certified technology research and development organization specializing in the design and manufacture of steel wire, cable and coiled tubing tools. With strong new product research and development capabilities, it has obtained 12 national utility model patent certificates and 1 invention patent certificate. Undertook two prefecture-level and provincial-level scientific research projects. Our products include wireline wireline wellhead blowout prevention equipment, wireline downhole tools and coiled tubing downhole tools. At present, we have provided professional equipment and technical support to more than 50 oilfield service companies in various regions at home and abroad.
◆Strict quality control system
Steel wire working tools are certified by API, and all manufacturing are strictly in accordance with API system, including quality control management, environmental management and occupational health and safety management. For each wire working tool and each part, we have achieved traceability from raw materials, production process to product shipment.
◆Hard work, after-sales service
On-site technical guidance exchanges with each other. Our sales and technical personnel communicated well with front-line engineers and technical experts on the job site, and solved technical problems such as material selection, sealing structure optimization, and accident handling in complex environments. And carried out many technical exchanges and friendly cooperation. We have done a good job of product after-sales service for customers, and we provide customers with more satisfactory services. We would like to thank more and more customers for their support and trust. In the future, we will do better.
