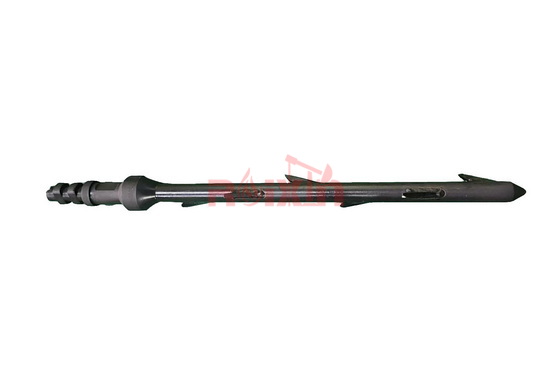

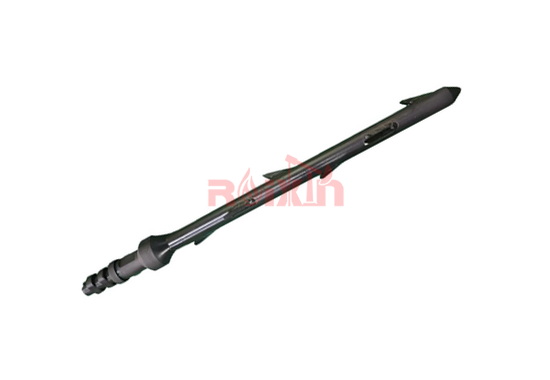

Alloy Steel&Nickel Alloy Centre Spear Wireline Fishing Tools 1.875 inch
I. Overview:
The outer wire spear is used to catch the broken wire in the tubing.
The outer fishing spear is an fishing device composed of a male buckle top part and a welding elastic tip on the fishing rod. The tip piece is welded with a tip strip to form a hook shape to grasp the end of the broken steel wire that has formed a hook loop. When the wire breaks under the packing box, an integral object such as a slotted barrel wire finder must be inserted before lowering the fishing spear to determine the position of the broken end and smash it into a ball.
II. Technical parameters:
| Size | Fishing neck | Connection |
| 1.5" | 1.375" | 15/16"-10UN |
| 1.875" | 1.75" | 1-1/16"-10UN |
| 2.5" | 2.313" | 1-1/16-10UN |
III. Structural features and use:
1. There are many sizes and models of steel wire outer spears, and different inner spears can be selected according to different tubing sizes.
2. If the spear is more than one or two meters above the tip of the wire and then the wire is caught, the wire may accumulate on the top of the spear and the wire cannot be caught. When the spear is fishing the wire, attach the rope cap to the spear and then connect it to the RB fishing tool to go down the well. Once the spear is entangled by the steel wire, it can be thrown away at the RB with an upward shock.
IV matters needing attention:
Before using the outer wire spear, the wire finder must first be lowered to form the wire nest in the well to facilitate the smooth fishing of the inner spear.
Welcome to contact us at any time.
Baoji Ruixin Energy Equipment Co.,Ltd has only focused on the research and development and manufacturing of slickline equipment and tools, built a high-tech enterprise with excellence and pursued the professionalism and accuracy of products. Always follow the site, serve the site, and solve the site problems with rich experience and technology; Ensure the practicability of the product. To provide excellent equipment and sincere service for slickline service companies in China and other countries around the world.
